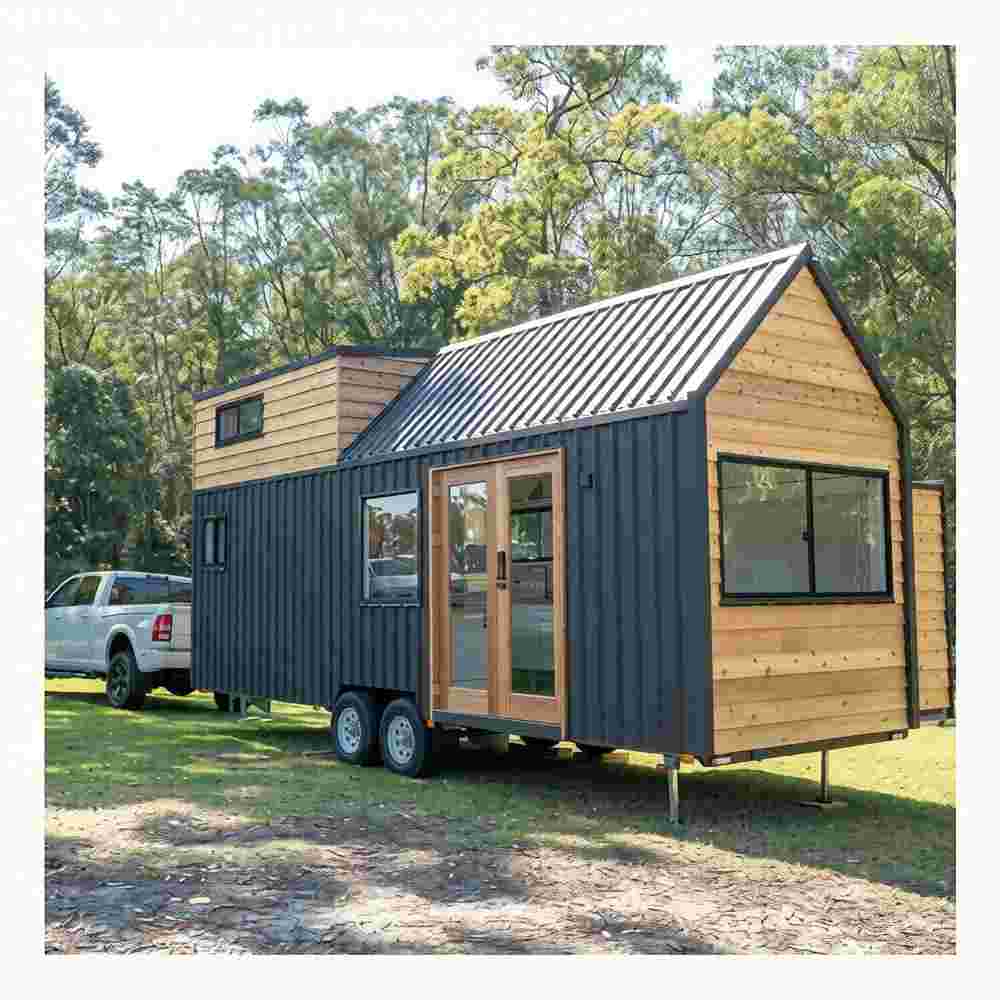

Australian Standard Light Gauge Steel Mobile Tiny House on Wheels
Australian Standard Light Gauge Steel Mobile Tiny House on Wheels

Australian Standard Light Gauge Steel Mobile Tiny House on Wheels

$39,000.00 USD inc. VAT

PRODUCT SUMMARY & KEY SPECIFICATIONS

  • Product Type: Australian Standard Light Gauge Steel Mobile Tiny House on Wheels

  • Dimensions & Towing Footprint: Overall Trailer Dimensions: 24.6 ft (L) × 7.71 ft (W) × 2.11 ft (H) / 7500mm (L) × 2350mm (W) × 645mm (H) | Flatbed Deck Size: 19.68 ft (L) × 7.54 ft (W) / 6000mm (L) × 2300mm (W) | Transportable in 20ft, 40ft, and 40HQ ISO containers

  • Trailer Chassis & Load Rating: Model 7P-35 heavy-duty container trailer chassis with a 7,716 lb (3,500 kg) payload capacity, 2,204 lb (1,000 kg) tare weight, 225/75R1514 heavy-duty tires, and integrated electric brakes

  • Steel Structural Frame: Hot-galvanized Q235 powder-coated steel chassis base, 3mm structural columns, steel corner castings, and heavy-duty roof beams

  • Thermal Envelope & Insulation: 50mm polyurethane (PU) spray wall insulation with 2.5mm painted galvanized steel outer slab, paired with a color steel roof system backed by 40mm glass wool insulation

  • Flooring & Decking: 16mm Magnesium Oxide (MgO) fire-resistant subfloor panels finished with 2mm heavy-duty vinyl floor sheet

  • Glazing & Entry Doors: Aluminum alloy sliding glass windows and security steel entry doors with handle locks and keys

  • Pre-Wired Electrical System: Multi-voltage system (220V/50Hz, 110V/60Hz) featuring 1 central distribution box, 2 industrial power plugs, 10 lighting fixtures, 4 wall switches, and 4 power outlets (including dedicated A/C socket)

  • Structural Performance Ratings: Engineered for extreme operating temperatures (-30°C to +45°C), Grade 11 wind resistance (up to 111.5 km/h), 1.5 KN/m² roof load, and 0.5 KN/m² floor load capacity

Good to Know

  • Base Pricing: The listed price covers the standard unit model and basic layout only. It does not include final customizations, add-ons, or site-specific upgrades.

  • Photos & Renderings: Product photos and 3D visuals are for layout and styling inspiration. Final finishes and fixtures depend on your selected configuration.

  • Shipping & Delivery: Ocean freight and local delivery vary by destination and order volume, so shipping fees are calculated separately and are not included in the base price.

  • Custom Quotes: Want a custom floor plan, upgraded finishes, or an accurate total price including freight? Reach out to our team for a personalized quote.

Certified Structural Engineering. Polyurethane Thermal Insulation Meets Heavy-Duty Off-Grid Towing.

Building a off-grid holiday home, primary tiny residence, or eco-resort cottage in harsh climates often leads to structural rotting, thermal heat loss, and compliance struggles with local towing standards. Developers and property owners need a rigid, fully insulated steel-framed living space engineered for transport safety and extreme weather conditions.

This Australian Standard Light Gauge Steel Mobile Tiny House on Wheels offers a heavy-duty, factory-engineered building solution. Constructed on a hot-galvanized Q235 steel chassis paired with a 3.5-ton rated trailer base with electric brakes, this unit features a 50mm PU spray insulated wall envelope and fire-resistant MgO subflooring. Built to withstand temperature extremes from -30°C to +45°C and Grade 11 winds, it delivers a durable mobile living unit ready for immediate hookup and placement.

Built for Severe Weather Resilience, Highway Safety & Rapid Assembly

  • Heavy-Duty 3.5-Ton Electric-Brake Chassis: Model 7P-35 trailer chassis with 7,716 lb (3,500 kg) payload capacity, 225/75R1514 tires, and electric brakes for safe, compliant towing.

  • 50mm Polyurethane Spray Thermal Wall Envelope: High-R PU spray insulation core encased in 2.5mm galvanized steel panels to eliminate thermal bridging and cut HVAC costs.

  • Fire-Resistant MgO Subfloor & Vinyl Decking: Built with 16mm Magnesium Oxide (MgO) subfloor panels and a 2mm vinyl wear layer for moisture resistance and stability.

  • Galvanized Q235 Steel Structural Skeleton: Powder-coated 3mm steel columns and heavy-duty roof beams rated for Grade 11 wind resistance (up to 111.5 km/h) and a 1.5 KN/m² roof load.

  • Pre-Wired Multi-Voltage Electrical Infrastructure: Integrated central distribution box with 2 industrial power inlets, 10 lights, 4 switches, and 4 power outlets (including dedicated A/C connection).

Specifications

  • Structure Type: Light Gauge Steel Towable Tiny House on Wheels

  • Trailer Model & Specs: Model 7P-35 | 3,500 kg Payload | 1,000 kg Tare Weight | Electric Brakes

  • Overall Dimensions: 24.6 ft (L) × 7.71 ft (W) × 2.11 ft (H) / 7500mm × 2350mm × 645mm

  • Structural Frame: Q235 Hot-Galvanized Powder-Coated Steel Beams, Columns (3mm), & Corner Castings

  • Insulation Core: 50mm PU Spray Wall Panel + 40mm Glass Wool Roof Insulation

  • Subfloor & Glazing: 16mm MgO Board + 2mm Vinyl Sheet | Aluminum Sliding Windows

  • Electrical System: 110V/60Hz or 220V/50Hz Wiring | Central Distribution | Industrial Power Plugs

  • Performance Limits: Temperature Range: -30°C to +45°C | Wind Rating: Grade 11 (≤111.5 km/h)
