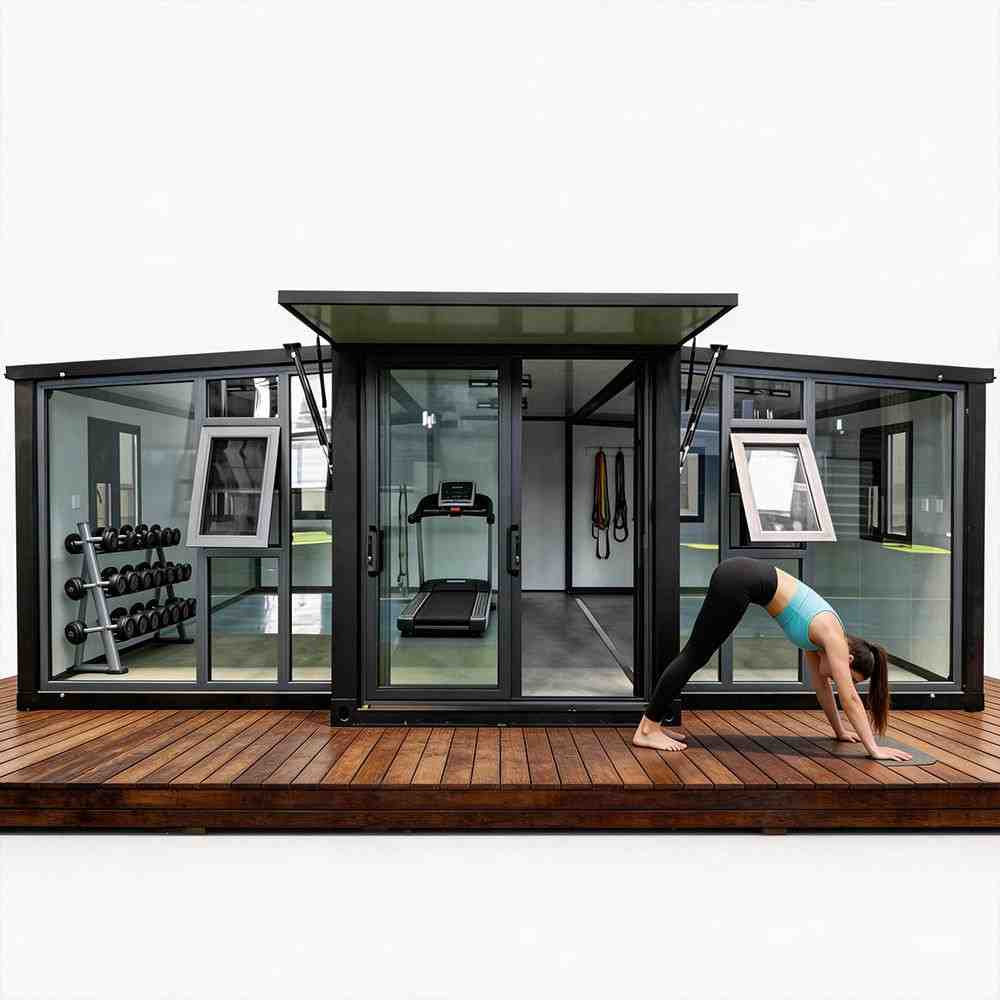

Expandable Modular Glass-Walled Outdoor Gym
Expandable Modular Glass-Walled Outdoor Gym

Expandable Modular Glass-Walled Outdoor Gym

$25,000.00 USD inc. VAT

PRODUCT SUMMARY & KEY SPECIFICATIONS

  • Product Type: Multi-Directional Expandable Modular Building / Glass-Walled Outdoor Gym & Commercial Pod

  • Footprint & Expansion Capabilities: Compact transport sizes in 20ft, 30ft, and 40ft models | Expands from 290 sq. ft. up to 947 sq. ft. (27 m² to 88 m², increasing usable floor space by 50% to 150%)

  • Architectural Features: Panoramic glass-walled facade for maximum natural lighting; customizable 1 to 6 bedroom or open workout/office layouts

  • Structural Chassis: 0.10 in to 0.12 in (2.5mm–3.0mm) hot-dip galvanized steel frame with cast steel corner fittings (rated for 40+ folding/unfolding cycles)

  • Thermal Insulation Rating: 2 in to 4 in (50mm–100mm) insulation core (EPS, Rockwool, or Polyurethane) rated for extreme temperatures between -40°F and +122°F (-40°C to +50°C)

  • Versatility & Stacking: Stackable up to 2 storeys high; equipped with heavy-duty adjustable foot-leveling screws for uneven terrain placement

  • Primary Applications: Glass-walled backyard home gym, commercial personal training studio, corporate site office, modular school classroom, workshop, or pop-up retail space

  • Warranty & Lifespan: 20+ Year structural service life with 5-Year frame warranty and remote engineering support

Good to Know

  • Base Pricing: The listed price covers the standard unit model and basic layout only. It does not include final customizations, add-ons, or site-specific upgrades.

  • Photos & Renderings: Product photos and 3D visuals are for layout and styling inspiration. Final finishes and fixtures depend on your selected configuration.

  • Shipping & Delivery: Ocean freight and local delivery vary by destination and order volume, so shipping fees are calculated separately and are not included in the base price.

  • Custom Quotes: Want a custom floor plan, upgraded finishes, or an accurate total price including freight? Reach out to our team for a personalized quote.

Expand Your Footprint by Up to 150%. Panoramic Glass Included.

Traditional commercial buildouts for fitness centers, pop-up showrooms, or corporate site offices require hefty leases, long permitting delays, and heavy site construction. Standard prefab cabins, on the other hand, often lack the natural light and open layout needed for inspiring workout or work environments.

This Expandable Glass-Walled Modular Building bridges the gap between compact transport and massive, architectural-grade interior space. Shipping in a compact 20ft, 30ft, or 40ft container profile, the unit smooth-unfolds on site—expanding your total usable floor area from 290 sq. ft. up to an incredible 947 sq. ft. Featuring panoramic glass curtain walls, it creates a bright, highly motivating environment for outdoor gyms, executive offices, schools, or high-end retail workshops.

Engineered Commercial & Industrial Features

  • Instant Multi-Directional Expansion: Dual-wing and multi-sided folding mechanics instantly boost floor area by 50% to 150%, expanding a standard footprint into a sprawling open-concept fitness studio or multi-office suite.

  • Panoramic Glass Curtain Wall Framing: Designed with floor-to-ceiling glass wall panels that maximize natural daylighting, boost interior aesthetics, and create an open atmosphere for gym-goers or site teams.

  • Heavy-Duty 20+ Year Structural Lifespan: Built with a 0.10 to 0.12-inch (2.5mm–3.0mm) hot-dip galvanized steel chassis, automated robotic welding, and cast-steel corner connectors rated for 40+ folding and relocation cycles.

  • Extreme All-Climate Insulation: Encapsulated with 2 to 4-inch (50mm–100mm) high-density insulation (EPS, Rockwool, or Polyurethane core options), ensuring complete interior climate comfort from -40°F up to +122°F (-40°C to +50°C).

  • Stackable & Terrain-Adaptable Design: Units can be stacked up to 2 stories high and connected horizontally for unlimited multi-room configurations. Includes built-in adjustable leveling foot screws for easy installation on uneven gravel, dirt, or hillside terrain.

Specifications

  • Transport Dimensions: Available in 20ft, 30ft, and 40ft shipping profiles

  • Expanded Footprint Range: Approx. 290 sq. ft. up to 947 sq. ft. (27m² to 88m² usable area)

  • Structural Frame: 2.5mm–3.0mm Hot-Dip Galvanized Steel Frame with automated welds

  • Wall & Thermal Core: 2 in to 4 in (50mm–100mm) Insulated Sandwich Panel (EPS / Rockwool / PU)

  • Temperature Operational Range: Rated for extreme performance from -40°F to +122°F

  • Structural Lifespan: 20+ Year lifespan with 40+ rated folding deployment cycles

  • Warranty: 5-Year structural frame warranty with lifetime online technical support
