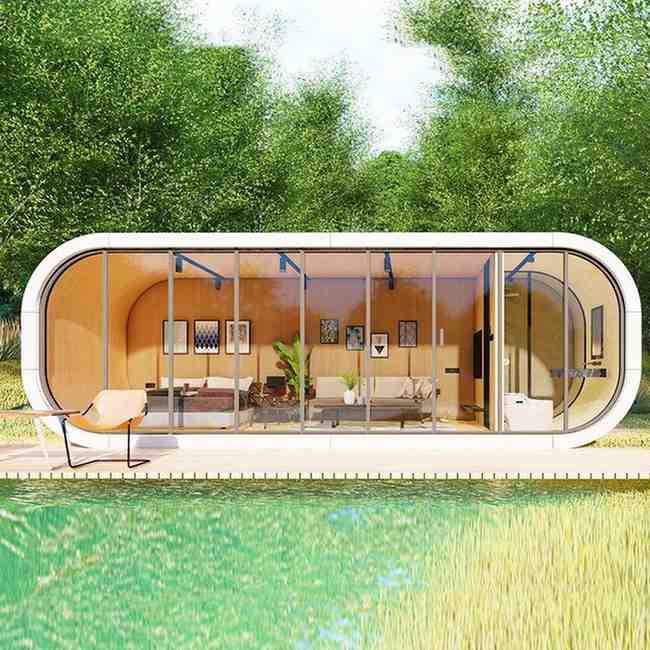

Modern Prefab Apple Cabin with Glass Curtain Wall & Graphene Floor Heating

PRODUCT SUMMARY & KEY SPECIFICATIONS

• Product Type: Prefabricated Luxury Modern Apple Cabin / Glass Curtain Wall Space Pod

• Exterior Build & Shell: 0.08 in (2mm) heavy-gauge curved aluminum plate facade over a galvanized steel structural frame (up to 0.12 in / 3mm wall tubing)

• Glazing & Windows: 60-series thermal-break aluminum frame with Low-E double tempered glass curtain wall (6mm + 12mm air gap + 6mm)

• Insulation Core: 4 in (10cm) thick spray polyurethane foam core for maximum thermal performance

• Heating & Flooring: Integrated graphene radiant floor heating system, 0.7 in (18mm) cement fiberboard subfloor, and 0.16 in (4mm) lock flooring finish

• Interior Wall & Ceiling: OSB base structure lined with 0.35 in (9mm) bamboo fiberboard veneer finish

• Primary Applications: Glamping resort suites, backyard home offices, luxury guest houses, pop-up showrooms, or private outdoor gyms

• Warranty & Support: 5-Year structural frame warranty with remote technical assistance

Good to Know

• Base Pricing: The listed price covers the standard unit model and basic layout only. It does not include final customizations, add-ons, or site-specific upgrades.

• Photos & Renderings: Product photos and 3D visuals are for layout and styling inspiration. Final finishes and fixtures depend on your selected configuration.

• Shipping & Delivery: Ocean freight and local delivery vary by destination and order volume, so shipping fees are calculated separately and are not included in the base price.

• Custom Quotes: Want a custom floor plan, upgraded finishes, or an accurate total price including freight? Reach out to our team for a personalized quote.

Architectural Innovation. All-Season Luxury Living.

Traditional off-grid cabins and backyard structures often compromise on energy efficiency, structural insulation, and modern design aesthetics.

This Modern Prefabricated Apple Cabin brings high-end contemporary architecture to any location. Engineered with a futuristic 2mm heavy-gauge aluminum exterior shell, a full Low-E double-paned glass curtain wall system, and integrated graphene cable floor heating, this luxury unit delivers residential-grade indoor comfort in temperatures ranging from freezing winters to scorching summers.

Engineered Commercial & Luxury Specifications

• Panoramic Low-E Glass Curtain Wall: Built with 60-series insulated thermal-break aluminum frames and 6mm-12mm-6mm Low-E double-tempered glass. Maximizes natural light while blocking UV radiation and outdoor heat transfer.

• 4-Inch High-Density Polyurethane Insulation: Encapsulated with a 4-inch (10cm) spray polyurethane foam thermal core—providing vastly superior insulation value compared to standard foam sandwich panels.

• Integrated Graphene Floor Heating: Built-in graphene floor heating cables provide quick, uniform radiant heat throughout the cabin, eliminating cold spots during winter months.

• Heavy-Duty Galvanized Frame & Leveling Support: Structural frame built with heavy-wall galvanized square tubing (up to 0.12-inch / 3mm wall thickness) featuring hot-dip galvanized lifting rings and reinforced adjustable foot supports.

• Luxury Interior Finishes: Premium 0.7-inch (18mm) cement fiberboard subflooring topped with 0.16-inch (4mm) luxury click-lock flooring, OSB base structural backing, and eco-friendly bamboo fiberboard wall/ceiling paneling.

Specifications

• Standard Footprint: Available in 20 ft or 28 ft length configurations (Approx. 160 – 220 sq. ft.)

• Exterior Shell: 0.08 in (2mm) architectural-grade aluminum plate shell

• Glazing System: 60-series thermal break aluminum + Low-E tempered glass (6mm / 12mm air gap / 6mm)

• Thermal Insulation: 4 in (10cm) high-density polyurethane foam core

• Heating System: Built-in graphene electric floor heating system

• Subfloor Construction: 0.7 in (18mm) cement fiberboard + 0.16 in (4mm) interlocking vinyl plank flooring

• Warranty: 5-Year structural frame warranty with lifetime technical support
