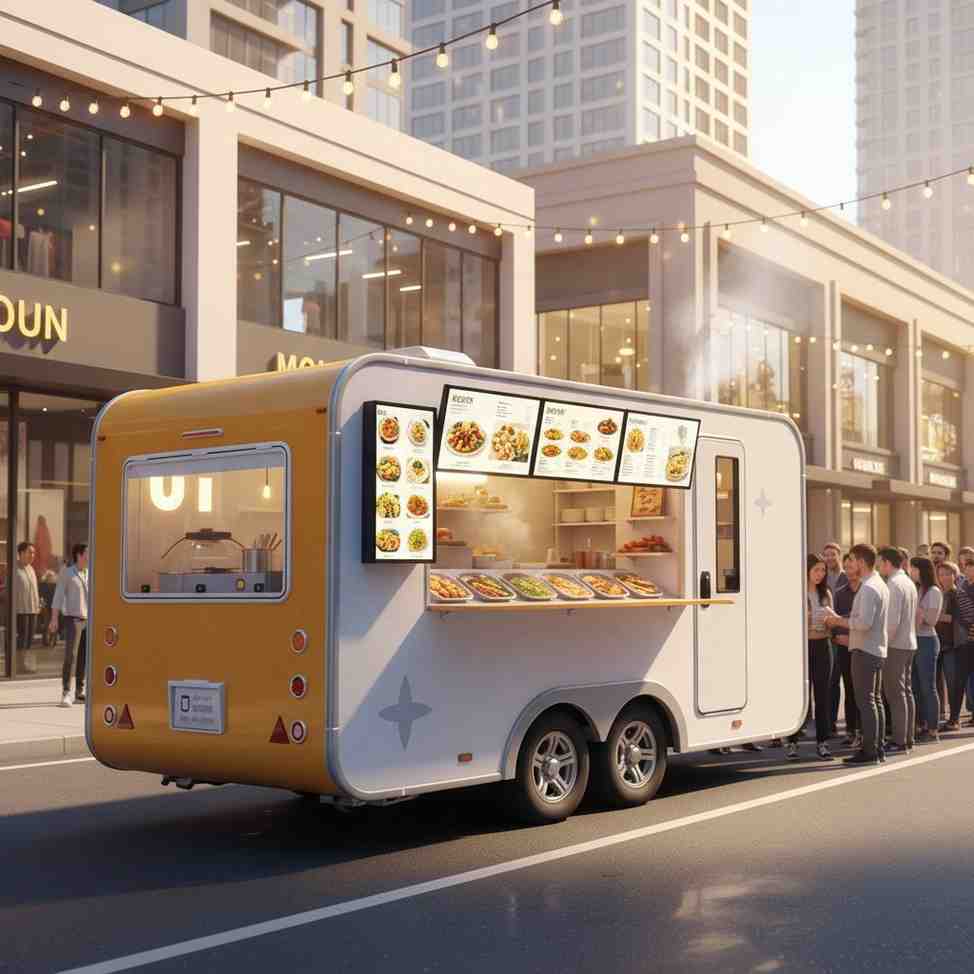

Orange Tech 14ft Insulated Mobile Food Trailer & Commercial Kitchen

PRODUCT SUMMARY & KEY SPECIFICATIONS

• Product Type: Orange Tech Customizable Heavy-Duty Concession & Mobile Food Trailer

• Footprint & Weight: Standard Footprint: 14.1 ft (L) × 7.22 ft (W) × 7.36 ft (H) / 4300mm (L) × 2200mm (W) × 2244mm (H) | Chassis Payload Capacity: Up to 3,307 lbs (1.5 Metric Tons / 1,500 kg)

• Insulated Shell Technology: Sandwich compression box body featuring a double-layer fiberglass plate outer shell, high-density XPS thermal foam insulation, eco-friendly bamboo fiber interior lining, and internal aluminum tube structural framing

• Chassis & Axle Engineering: High-strength manganese steel lightweight chassis built for high stiffness, maximum safety, and long-term corrosion resistance; configurable in single-axle or dual-axle setups

• Service Windows & Accessibility: Standard large 6.56 ft × 3.94 ft (2000mm × 1200mm) main service window; optional front and rear 4.92 ft × 2.62 ft (1500mm × 800mm) display windows; 5.9 ft × 1.97 ft (1800mm × 600mm) side entry door with optional mechanical fold-out step plate

• Primary Vending Applications: Commercial fast-food truck, mobile espresso/coffee bar, burger & taco kitchen, or event concession trailer

• Customization & Assurance: Fully customizable interior equipment, under-counter cabinetry, electrical, and plumbing packages

Good to Know

• Base Pricing: The listed price covers the standard unit model and basic layout only. It does not include final customizations, add-ons, or site-specific upgrades.

• Photos & Renderings: Product photos and 3D visuals are for layout and styling inspiration. Final finishes and fixtures depend on your selected configuration.

• Shipping & Delivery: Ocean freight and local delivery vary by destination and order volume, so shipping fees are calculated separately and are not included in the base price.

• Custom Quotes: Want a custom floor plan, upgraded finishes, or an accurate total price including freight? Reach out to our team for a personalized quote.

Heavy-Duty Thermal Insulation. High Payload Manganese Chassis Built for Full Kitchens.

Operating a high-volume mobile food trailer in extreme hot or cold climates can compromise working conditions, disrupt kitchen refrigeration, and increase interior energy costs. Standard thin-walled concession trailers often lack adequate thermal protection and structural weight support for heavy commercial line equipment.

This Orange Tech 14ft Insulated Mobile Food Trailer is built to commercial catering standards. Engineered with an advanced multi-layer sandwich compression box—combining double-layer fiberglass, high-density XPS insulation, and structural aluminum tubing—this unit sits on a high-strength manganese steel chassis rated for a 3,307 lb (1.5 Ton) payload. Featuring a massive 6.5ft main service window, customizable single or dual axles, and options for full interior kitchen buildouts, it provides a stable, temperature-regulated mobile kitchen.

Built for All-Weather Insulation & Heavy Equipment Payloads

• Multi-Layer Insulated Wall Technology: Double-layer fiberglass exterior panels with dense XPS core insulation and bamboo fiber interior wall lining keep cooking environments cool in summer and warm in winter.

• 1.5-Ton Manganese Steel Chassis: Built on a lightweight, high-stiffness manganese steel chassis designed for maximum payload stability and long-term rust resistance during highway towing.

• Massive Commercial Service Window: Standard equipped with a large 6.56 ft × 3.94 ft (2000mm × 1200mm) main vending window, with optional front and rear display windows for maximum customer airflow and order efficiency.

• Flexible Single/Dual Axle Configurations: Choose single-axle or dual-axle setups based on your total commercial kitchen appliance weight and towing requirements.

• Customizable Interior Layout & Cabinetry: Factory-configurable stainless steel workbenches, under-counter cabinets, gas lines, electric panels, and sanitation packages built to your local health codes.

Specifications

• Exterior Dimensions: 14.1 ft (L) × 7.22 ft (W) × 7.36 ft (H) / 4300mm × 2200mm × 2244mm

• Chassis Material & Payload: High-Strength Manganese Steel | 3,307 lbs (1.5 Metric Tons) Payload Capacity

• Wall Composition: Double Fiberglass Plate + XPS Foam Core + Bamboo Fiber Board + Aluminum Tube Framing

• Axle Options: Single-Axle or Dual-Axle Configurations

• Windows & Access: Main Service Window (2000×1200mm) | Entry Door (1800×600mm) | Optional Front/Rear Windows

• Custom Add-Ons: Optional Mechanical Step Plate, Custom Cabinetry, & Full Commercial Kitchen Appliance Suites
