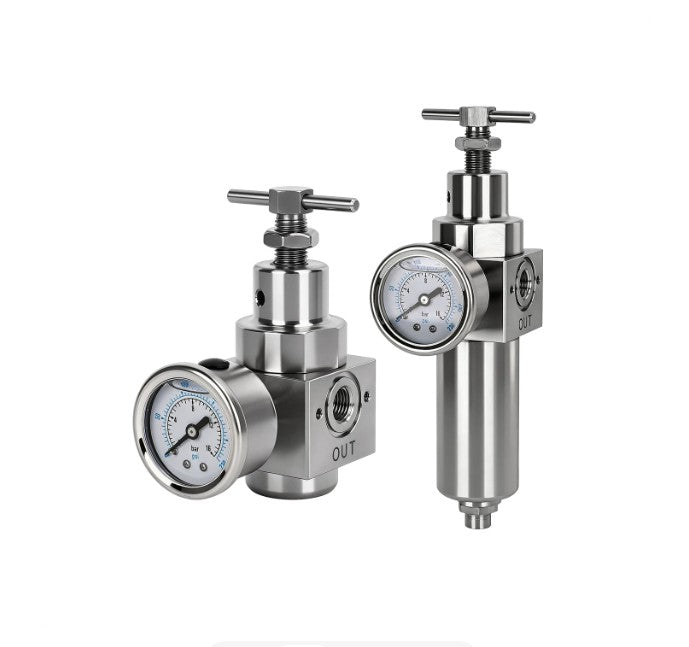

SUS316 Stainless Steel High Pressure Filter Regulator 1/4" - 1" NPT/G

Key Features

• Premium SUS316 Construction: Made from high-grade SUS316 stainless steel for superior corrosion and chemical resistance, ideal for harsh outdoor environments, acid/alkali exposures, and semiconductor industries.

• High-Pressure Resistance: Built to handle high-pressure applications with high stability and durability.

• High Flow & Efficient Filtration: Delivers high flow rates while effectively removing moisture and fine micro-particles.

• Precise Pressure Adjustment: Features a accurate, sensitive piston-type regulator for quick and dependable pressure settings.

• Compact & Lightweight: Space-saving layout designed for easy installation in tight spaces.

Specifications

Model: SS-SFR-200 / 400 / 600

Port Size: 1/4", 3/8", 1/2", 3/4", 1"

Fluid: Compressed Air

Regulator Construction: Piston

Body Material: Stainless Steel SUS316

Bowl Material: Stainless Steel SUS316

Pressure Gauge Material: Case: Stainless Steel SUS304 / Thread: Stainless Steel SUS316

Filter Element Material: Stainless Steel SUS316

Filtration Accuracy: 5 μm (Standard), 40 μm (Optional)

Operating Pressure Range: 30 kgf/cm² (Standard), 50 kgf/cm² (Optional)

Proof Pressure: 50 kgf/cm²

Operating Temperature Range: Normal Type: -5°C to 120°C / Low-Temp Type: -40°C to 50°C

Drain Type: Semi-Auto Drain (Drains automatically below 0.5 kgf/cm²)

Standard Accessories: Pressure Gauge (0–16 kgf/cm²), Plug Head, Fixed Frame Group

Optional Accessories: Extended Pressure Gauge Ranges (0–16 kgf/cm² / 0–60 kgf/cm²)
