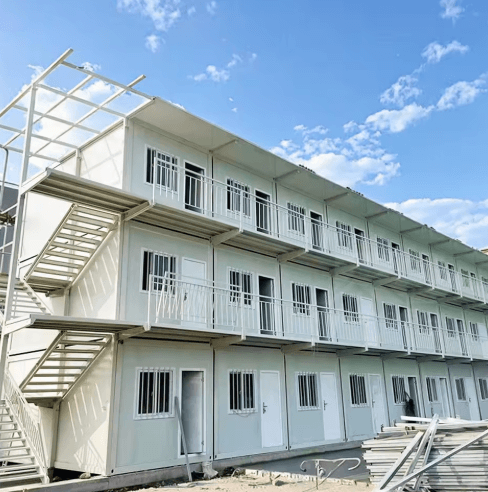

Temporary Dormitory Building

Good to Know

• Price: Applies to standard 4-bedroom villa model configurations only.

• Photos: Visuals are for inspiration; actual units are built to standard specs unless upgraded.

• Shipping: Shipping costs are calculated based on destination and are not included in the base price.

• Customization: Contact our team for floor plan adjustments and detailed freight quotes.

Product Specifications

• External Dimensions: 19.52 ft x 9.84 ft x 9.19 ft

• Main Structural Frame: Galvanized cold-rolled steel (Q235B), 0.11 inch thickness

• Secondary Roof Beams: Galvanized square steel (1.97 x 1.97 inch at 0.06 inch thickness and 1.57 x 2.36 inch at 0.05 inch thickness)

• Ground Main Beam: Galvanized cold-rolled steel (Q235B), 0.11 inch thickness

• Ground Secondary Beams: High-strength galvanized square steel (1.97 x 3.94 inch), 9-grade configuration

• Wall Construction: 2 inch thick fireproof color steel rock wool sandwich panels

• Wall Panel Siding: 0.012 inch galvanized color steel interior and exterior plates

• Ceiling Panel: 0.01 inch thick 811-type integrated ceiling in White Gray

• Surface Finish: Graphene electrostatic powder spraying for maximum corrosion resistance

• Design Type: Rapid-deploy Z-folding expandable structure

• Applications: Portable office, apartment, temporary camp, or student dormitory
